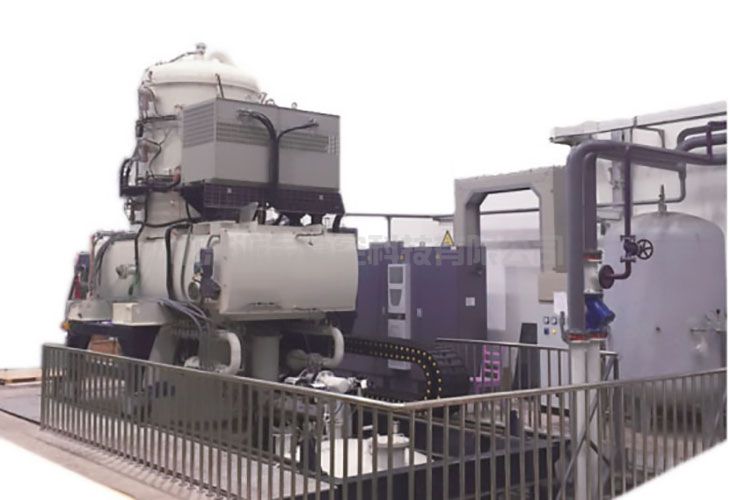

真空立室臥式水淬爐
真空立室臥式水淬爐
Vacuum chamber horizontal water quenching furnace
應用簡介/Application
適用于鈦合金固溶處理，TC4、 TC16、TC18等;鈹青銅固溶處理；鎳基、鈷基、高彈性合金3J1、3J21、3J53等固溶處理；核工業用材料17-4PH;不銹鋼類410等固溶處理
It is suitable for solid solution treatment of titanium alloy, TC4, TC16, TC18 and the like; solution treatment of nickel-based bronze; nickel-based, cobalt-based, highelasticity alloy 3J1, 3J21, 3J53, etc. solution treatment; material for nuclear industry 17-4PH; stainless steel type 410 and other solid solution treatment
產品特點/characteristic
1.爐體為立式，雙室結構，全不銹鋼材料制作，依據實際情況可選一體結構/分體結構
The furnace body is made of vertical, double chamber structure and all stainless steel material. According to the actual situation, the integrated structure or split structure can be selected.
2.全金屬平加熱結構，爐溫均勻性好
All metal flat heating structure, good furnace temperature uniformity
3.淬火配置制冷機，水溫可達5℃水淬效果更佳
And the water temperature can reach 5℃ and the water quenching effect is better.
產品規格/product specifications
注：特殊規格要求可根據客戶要求定制
Note: Special specification requirements can be customized according to customer requirements
| 參數 / 型號 Parameter/ Model |
PJ-LY68 | PJ-LY810 | PJ-LY1012 | PJ-LY1215 | PJ-LY1518 |
| 有效熱區 D×H(mm） Effective hot zone |
φ600×800 | φ800×1000 | φ1000×1200 | φ1200×1500 | φ1500×1800 |
| 裝載重量 （KG） Load weight |
500 | 800 | 1000 | 1200 | 2000 |
| 最高溫度 （℃） Max.temprature |
1350 | 1350 | 1350 | 1350 | 1350 |
| 爐溫均勻性 （℃） Furnace temperature uniformity |
±5 | ±5 | ±5 | ±5 | ±5 |
| 真空度 （Pa） Vacuum degree |
4.0 E -1/ 6.7 E -3 | 4.0 E -1/ 6.7 E -3 | 4.0 E -1/ 6.7 E -3 | 4.0 E -1/ 6.7 E -3 | 4.0 E -1/ 6.7 E -3 |
| 壓升率 （Pa） Pressure rise rate |
≤ 0.5 | ≤ 0.5 | ≤ 0.5 | ≤ 0.5 | ≤ 0.5 |
| 移送時間 Transfer time（S） |
≤ 7 | ≤ 7 | ≤ 7 | ≤ 7 | ≤ 7 |
| 淬火介質 Quenchant |
純凈水 Purified water |
純凈水 Purified water |
純凈水 Purified water |
純凈水 Purified water |
純凈水 Purified water |
以上參數可根據工藝要求調整，不作為驗收依據，具體以技術方案和協議為準
The above parameters can be adjusted according to the process requirements, not as a basis for acceptance, the specific technical plan and agreement shall prevail
配置選擇/Configure select
| 爐門 Furnace door |
整體式 Unitary |
加熱室移動式 Heating chamber mobile |
水槽移動式 Flume mobile type |
|
| 中間隔熱門 Middle septum hot |
機械傳動 Mechanical drive |
氣動 Pneumatic |
||
| m quenching oil flow mode | 漿葉循環 blade circulatory |
噴嘴噴射 Nozzle injection |
外置風冷換熱 External air-cooled heat transfer |
|
| 爐膽 Flue |
石墨加熱元件與石墨氈復合屏合成 結構 Synthesis structure of Graphite heating element and Graphite felt Composite screen |
鉬加熱元件與金屬隔熱屏合成結構 The composite structure of Mo heating element and metal ther mal insulation screen |
鎳鉻合金帶加熱元件與不銹鋼屏合成結構 Synthesis structure of Ni-Cr Alloy Strip heating element and stain less Steel screen |
|
| 真空泵組和真空計 Vacuum pump set and vacuum gauge |
進口 Imported |
高品質國產 High quality Made in China |
||
| 真空度 Vacuum degree |
高真空 High vacuum |
中真空 Medium vacuum |
||
| PLC | 西門子 Siemens |
歐姆龍 OMRON |
三菱 Mitsubishi |
|
| 溫控儀表 Thermostat meter |
歐陸 EUROTHERM |
島電 Electric conduction |
||
| 熱電偶 Thermocouple |
S 型分度號 S-type dividing number |
|||
| 記錄儀 Grapher |
有紙記錄儀 Paper recorder |
無紙記錄儀 Paperless recorder |
||
| 人機界面 Human-computer interface |
模擬屏 Analog screen |
計算機觸摸屏 Computer touch screen |
||
| 電器元件 Electrical component |
高品質國產 High quality Made in China |
施耐德 Schneider |
西門子 Siemens |
|
