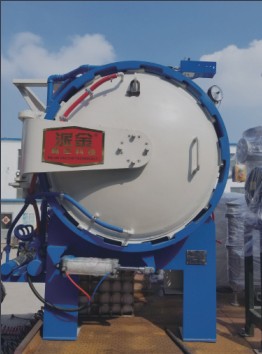

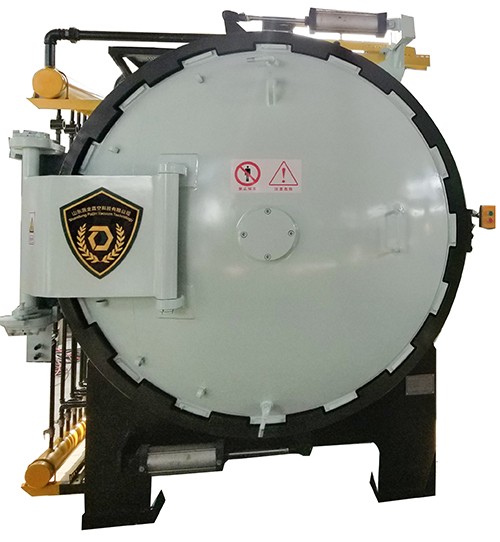

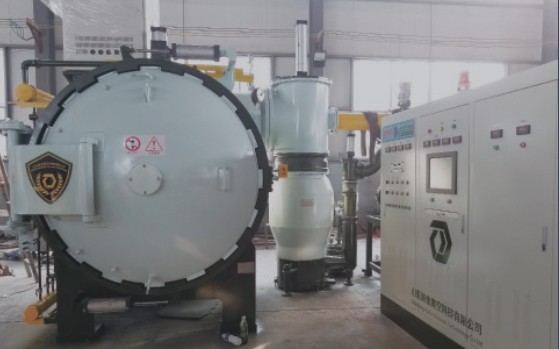

單室臥式高壓氣淬真空爐（節能型/風道型）

Single chamber horizontal high pressure gas quenching vacuum furnace  (energy saving / duct type)

應用簡介/Application

適用于模具鋼、高速鋼、不銹鋼等材料的淬火處理；不銹鋼、鈦及鈦合金等材料的固溶處理；多種磁性材料的退火處理及回火處理； 也可用于真空釬焊及真空燒結等

It is suitable for quenching treatment of materials such as die steel, high-speed steel, stainless steel, etc; solution  treatment of materials such as stainless steel, titanium and titanium alloy; annealing treatment and tempering treatment of  various magnetic materials; and can be used for vacuum gas welding and vacuum sintering.

產品特點/characteristic

1. 采用高效方形換熱器， 冷卻速度提高80%

Using high efficiency square heat exchanger, the cooling rate is increased by 80%

2. 風道型風嘴沿加熱室圓周360度均勻、交錯布置，冷卻均勻性好/加熱型加熱過程中風嘴自動關閉，節能40%

The air duct type air nozzle is evenly and staggered along the circumference of the heating chamber 360 degrees, and  the cooling uniformity is good. The air nozzle is automatically closed during the heating type heating process, and the energy  saving is 40%.

3. 加熱元件沿加熱室圓周360度均勻布置，溫度均勻性高

The heating element is uniformly arranged along the circumference of the heating chamber, and the temperature is high

4. 采用復合硬氈/金屬屏為加熱室隔熱層 ，適用不同工藝環境

The composite felt / metal screen is used as the heat insulation layer of the heating chamber, which is suitable for  different process environments

5. 工件變形小，生產效率高，使用成本低

The workpiece has the advantages of small deformation, high production efficiency and low cost of use

6.編程工藝靈活輸入，機械動作穩定可靠，故障自動報警/顯示

Flexible input of programming process, stable and reliable mechanical action, automatic alarm/ display of fault

7. 氣淬風機變頻驅動，對流加熱功能可選、九點測溫可選、分級及等溫淬火、

the gas quenching fan is driven by frequency conversion, the convection heating function is optional, the nine-point  temperature measurement is optional, the grading and the isothermal quenching are carried out

8. 全智能化工業計算機控制系統并有一套手動操作系統

Fully intelligent chemical industry computer control system and a manual operating system

9. 操作簡潔、編程工藝靈活輸入、機械動作穩定可靠

Simple operation, flexible input of programming process, stable and reliable mechanical action

10. 手動/半自動/自動 故障自動報警/顯示

Manual / semi-automatic / automatic fault automatic alarm / display

配置選擇Configure select:

產品規格/ Specifications：

注：特殊規格要求可根據客戶要求定制

Note: Special specification requirements can be customized according to customer requirements

以下參數可根據工藝要求調整，不作為驗收依據，具體以技術方案和協議為準

The following parameters may be adjusted according to the process requirements and shall not be used as the basis for acceptance, depending on the technical scheme and agreement.
