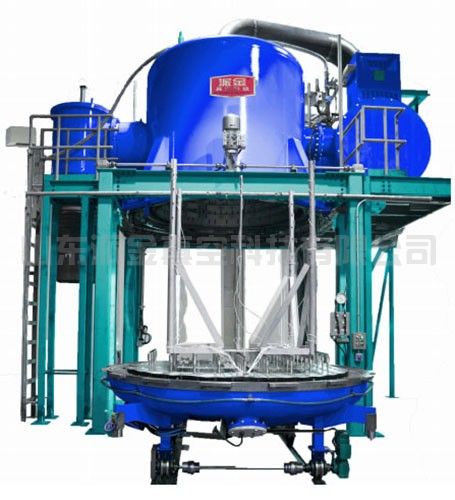

真空熱壓燒結爐
真空熱壓燒結爐
Vacuum hot pressing sintering furnace
真空熱壓燒結爐的應用簡介/Application
PJRY-SH燒結爐采用不銹鋼爐體雙層水冷套結構，處理材料全部采用金屬電阻加熱，通過輻射從加熱器直接傳向被加熱工件。加壓壓頭可根據工藝要求采用TZM（鈦鋯鉬）合金或CFC高強度碳碳復合纖維制成，在高溫下對工件施加壓力，壓力可達800噸
The PJRY-SH sintering furnace adopts the structure of stainless steel furnace double layer water cooling sleeve, and all the treatment materials are heated by metal resistance, and the radiation is transmitted directly from the heater to the heated workpiece. According to the technological requirements, the pressure head can be made of TZM (titanium, zirconium and Mo) alloy or CFC high strength carbon and carbon composite fiber. The pressure on the workpiece can reach 800t at high temperature.
PJRY-SH全金屬型真空擴散焊爐同樣適用于高溫高真空釬焊，最高溫度可達1500度
PJRY-SH all-metal vacuum diffusion welding furnace is also suitable for high temperature and high vacuum brazing, with a maximum temperature of 1500 degrees.
真空熱壓燒結爐的產品特點/characteristic
1. 最高工作溫度1800度
Max. operating temperature:1800 degrees.
2. 可控硅控制器使加熱元件的功效最優化
The thyristor controller optimizes the efficiency of the heating element.
3. 簡單安全的工藝操作過程
Simple and safe process operation process.
4. 整套設備有著良好的拆裝性和創新的控制系統
The whole equipment has good disassembly and assembly and innovative control system..
5. 有效的機械保護系統
Effective mechanical protection system.
6. 壓板和所有加壓部件高度可調
The height of the pressure plate and all the pressing parts can be adjusted.
7. 通過計算機引導工藝菜單，并能夠記錄數據和儲存數據
Boot the process menu through the computer, and be able to record and store data.
真空熱壓燒結爐的產品規格/product specifications
注：特殊規格要求可根據客戶要求定制
Note: Special specification requirements can be customized according to customer requirements
| 型號 model | PJ-RY | PJ-RY | PJ-RY | PJ-RY | PJ-RY |
| 有效尺寸 (mm) Effective size | 客制 Customer system | 客制 Customer system | 客制 Customer system | 客制 Customer system | 客制 Customer system |
| 最高溫度 (℃ ) Max.temperature | 1800 | 1800 | 1800 | 1800 | 1800 |
| 工作溫度 (℃ ) Working temperature | 1600（帶壓板） 1600 (with pressure plate) | 1600（帶壓板） 1600 (with pressure plate) | 1600（帶壓板） 1600 (with pressure plate) | 1600（帶壓板） 1600 (with pressure plate) | 1600（帶壓板） 1600 (with pressure plate) |
| 升溫速度 （℃） Heating rate | 室溫 -1800 ≤ 60 分鐘 Room temperature-1100 ≤ 60 minutes | ||||
| 均溫性 (±℃ ) Uniform temperature property | ±5 | ±5 | ±5 | ±5 | ±5 |
| 極限真空 (Pa) Ultimate vacuum | 6.0*10-1Pa | ||||
| 壓升率 (Pa/h) Pressure rise rate | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 |
以上參數可根據工藝要求調整，不作為驗收依據，具體以技術方案和協議為準
The above parameters can be adjusted according to the process requirements, not as a basis for acceptance, the specific technical plan and agreement shall prevail
真空熱壓燒結爐的配置選擇/Configure select
| 爐型結構 Furnace structure | 單室臥式 Single,horizontal room | 單室立式 single, vertical chamber | ||
| 可設計流水線組合，多臺釬焊爐共用一套真空系統，爐外運輸系統 Can design assembly line combination, multiple brazing furnaces share a set of vacuum system,out-of-furnace transportation system | ||||
| 爐門開啟方式 Furnace door opening mode | 回轉式 rotary | 平開式 Flat type | ||
| 真空泵組和真空計 Vacuum pump set and vacuum gauge | 進口 Imported | 高品質國產 High quality Made in China | ||
| 真空度 Vacuum degree | 高真空 High vacuum | 中真空 medium vacuum | ||
| PLC | 西門子 Siemens | 歐姆龍 OMRON | 三菱 Mitsubishi | |
| 溫控儀表 Thermostat meter | 歐陸 EUROTHERM | 島電 Electric conduction | ||
| 熱電偶 Thermocouple | C 分度號（鎢套管 / 鉬套管） C score number (tungsten casing / Mo casing) | |||
| 記錄儀 Grapher | 有紙記錄儀 Paper recorder | 無紙記錄儀 Paperless recorder | ||
| 人機界面 Human-computer interface | 模擬屏 Analog screen | 計算機觸摸屏 Computer touch screen | ||
| 電器元件 Electrical component | 高品質國產 High quality domestic | 施耐德 Schneider | 西門子 Siemens | |
