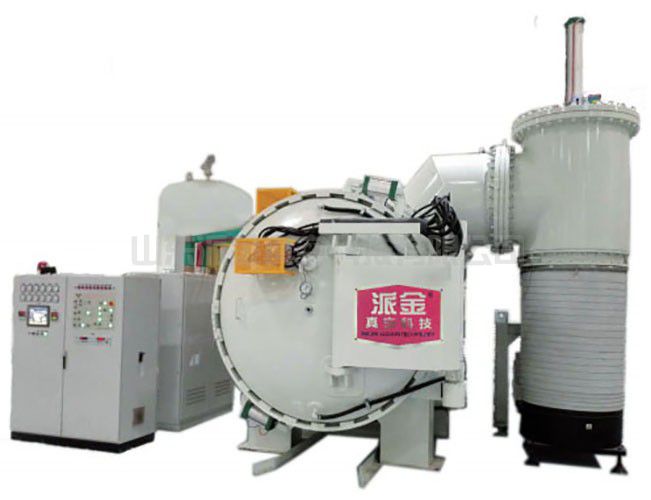

Single chamber horizontal/vertical tempering vacuum furnace
應用簡介/Application
適用于工模具鋼、高速鋼、不銹鋼等材料的淬火后回火處理；不銹鋼、鈦及鈦合金、有色金屬等材料的固溶后時效處理；有色金屬的再結晶時效處理
It is Suitable for quenching and tempering treatment of die steel, high speed steel, stainless steel and other materials; solid solution post-aging treatment of stainless steel, titanium and titanium alloys, non-ferrous metals, etc.; recrystallizing aging treatment of non-ferrous metals
產品特點/characteristic
1. 加熱元件采用多區控溫布置，溫度均勻性達±3℃
The heating element is arranged by multi-zone temperature control, and the temperature uniformity is up to ±3 ℃
2.采用金屬屏為加熱室隔熱層
Using metal screen as heat insulation layer of heating chamber
3.對流風機攪拌循環，加熱時間短，熱效率高
The mixing cycle of countercurrent fan is short in heating time and high in thermal efficiency
4.編程工藝靈活輸入，機械動作穩定可靠，故障自動報警/顯示
Flexible input of programming process, stable and reliable mechanical action, automatic alarm / display of fault
5.風機變頻驅動、九點測溫
Fan frequency conversion drive, nine point temperature measurements
6.全智能化工業計算機控制系統并有一套手動操作系統
Fully intelligent chemical industry computer control system and a manual operating system
7.操作簡潔、編程工藝靈活輸入、機械動作穩定可靠
Simple operation, flexible input of programming process, stable and reliable mechanical action
8.手動/半自動/自動 故障自動報警/顯示
Manual/ semi-automatic/ automatic fault automatic alarm/ display
產品規格/product specifications
| 參數 / 型號 Parameter/ Model | PJ-H446 | PJ-H557 | PJ-H669 | PJ-H7711 | PJ-H8812 | PJ-H9916 |
|---|---|---|---|---|---|---|
| 有效熱區 W×H×L Effective hot zone | 400×400×600 | 500×500×700 | 600×600×900 | 700×700×1100 | 800×800×1200 | 900×900×1600 |
| 裝載重量 （KG） Load weight | 200 | 300 | 500 | 800 | 1200 | 2000 |
| 最高溫度 （℃） Max.temprature | 750 | 750 | 750 | 750 | 750 | 750 |
| 爐溫均勻性 （℃） Furnace temperature uniformity | ±5 | ±5 | ±5 | ±5 | ±5 | ±5 |
| 真空度 （Pa） Vacuum degree | 4.0 E -1/ 6.7 E -3 | 4.0 E -1/ 6.7 E -3 | 4.0 E -1/ 6.7 E -3 | 4.0 E -1/ 6.7 E -3 | 4.0 E -1/ 6.7 E -3 | 4.0 E -1/ 6.7 E -3 |
| 壓升率 （Pa） Pressure rising rate | ≤ 0.5 | ≤ 0.5 | ≤ 0.5 | ≤ 0.5 | ≤ 0.5 | ≤ 0.5 |
| 氣冷壓力 （bar） Air cooling pressure | 2 | 2 | 2 | 2 | 2 | 2 |
| 冷卻氣體（99.995％） Cooling gas | N2/Ar/He | N2/Ar/He | N2/Ar/He | N2/Ar/He | N2/Ar/He | N2/Ar/He |
以上參數可根據工藝要求調整，不作為驗收依據，具體以技術方案和協議為準
The above parameters can be adjusted according to the process requirements, not as a basis for acceptance, the specific technical plan and agreement shall prevail
配置選擇/Configure select
| 爐型結構 Furnace structure | 臥式 Horizontal type | 立式 Vertica | 井室 Well chamber | |
|---|---|---|---|---|
| 爐門開啟方式 Furnace door opening mode | 回轉式 Rotary | 平開式 Flat type | 垂直升降式 Vertical lifting type | |
| 氣冷方式 Air-cooling mode | 爐體內置換熱器循環冷卻 Circulating cooling of displacement heater in furnace body | |||
| 爐膽 Flue | 寬幅鎳鉻合金加熱帶與多層不銹鋼屏組合的合成結構爐膽，溫度均勻性好 The composite structure of the wide-width nickel-chromium alloy heating belt and the multi-layer stain less steel screen combination has the advantages of high temperature uniformity | |||
| 真空泵組和真空計 Vacuum pump set and vacuum gauge | 進口 Imported | 高品質國產 High quality Made in China | ||
| 真空度 Vacuum degree | 高真空 High vacuum | 中真空 Medium vacuum | ||
| PLC | 西門子 Siemens | 歐姆龍 OMRON | 三菱 Mitsubishi | |
| 溫控儀表 Thermostat meter | 歐陸 EUROTHERM | 島電 Tlectric conduction | ||
| 熱電偶 Thermocouple | N 型分度號 N-type dividing Number | |||
| 記錄儀 Grapher | 有紙記錄儀 Paper recorder | 無紙記錄儀 Paperless recorder | ||
| 人機界面 Human-computer interface | 模擬屏 Analog screen | 計算機觸摸屏 Computer touch screen | ||
| 電器元件 Electrical component | 高品質國產 High quality Made in China | 施耐德 Schneider | 西門子 Siemens | |
