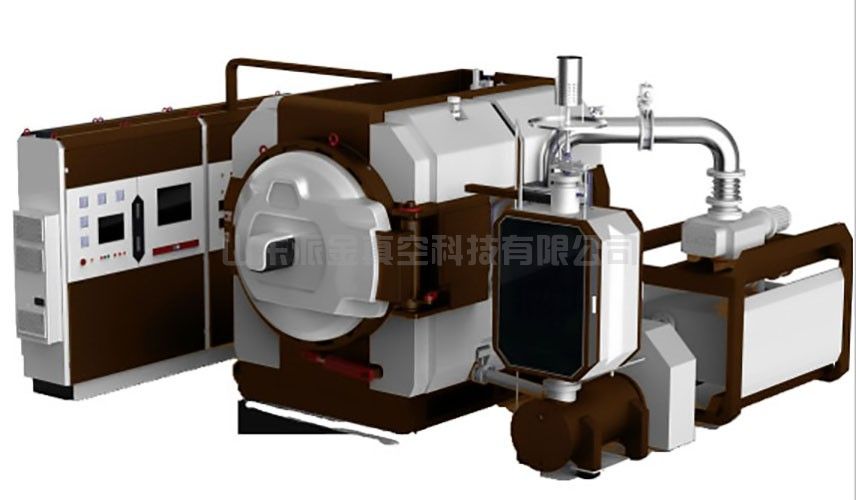

粉末冶金燒結爐
粉末冶金燒結爐
Powder metallurgy sintering furnace
粉末冶金燒結爐的應用簡介/Application
用于粉末合金成型的脫氣、脫脂、燒結一體化處理，適用于多品種，小批量注射成型產品，MIM專用設備
It is used for gas removal, defatting and sintering of powder alloy molding , suitable for multi-variety, small batch injection molding products, MIM special equipment.
粉末冶金燒結爐的產品特點/characteristic
1.采用多區加熱器布置，爐溫均勻性好
The arrangement of multi-zone heater is adopted, and the furnace temperature is uniform.
2. 采用方形脫脂箱，以應對大量成型劑，對爐內元件無污染
The square defatting box is used to deal with a large number of molding agents and there is no pollution to the components in the furnace.
3. 具備柔性抽真空、真空燒結、微正壓燒結等功能
It has the functions of flexible vacuum extraction, vacuum sintering, micro-positive pressure sintering and so on.
4.采用最新的隔熱結構和材料，抗壓力強，節能明顯
The latest thermal insulation structure and materials is used, the pressure resistance is strong, and the energy saving is obvious.。
5.采用上位機操作，PLC集中控制，操作簡單，可靠性高
It adopts upper computer operation, PLC centralized control, simple operation and high reliability.。
6.具有超溫超壓等故障報警，機械式自動壓力保護，自動超壓泄壓保護，動作互鎖等功
It has the functions of overtemperature and overpressure alarm, mechanical automatic pressure protection, automatic overpressure relief protection, action interlock and so on, and the safety of the equipment is high.
7.具備遠程操作、遠程故障診斷和遠程軟件升級等功能
Remote operation, remote fault diagnosis and remote software upgrade functions,etc.
粉末冶金燒結爐的產品規格/product specifications
注：特殊規格要求可根據客戶要求定制
Note: Special specification requirements can be customized according to customer requirements
| 技術參數 Technical parameter |
PJSJ-gr-30-1600 | PJSJ-gr-60-1600 | PJSJ-gr-100-1600 | PJSJ-gr-200-1600 | PJSJ-gr-450-1600 |
| 有效空間 （mm） Useful space |
200×200×300 | 300×300×600 | 300×300×900 | 400×400×1200 | 500×500×1800 |
| 裝爐重量 （Kg） Charging weight |
100KG | 200KG | 400KG | 600KG | 1000KG |
| 抽氣速率 Pumping rate |
10min 內到 5Pa | 10min 內到 5Pa | 10min 內到 5Pa | 10min 內到 5Pa | 10min 內到 5Pa |
| 冷卻方式 Cooling-down method |
惰性氣體 inert gases |
惰性氣體 inert gases |
惰性氣體 inert gases |
惰性氣體 inert gases |
惰性氣體 inert gases |
| 溫度均勻性 Temperature homogeneity |
±3℃ | ±3℃ | ±3℃ | ±3℃ | ±3℃ |
| 設計壓力 Design pressure |
1 MPa，6MPa，12MPa（或客制化） 1 MPa,6MPa,12MPa (or customized) |
||||
| 泄漏率 Leak(age) rate |
0.5pa/h | ||||
| 極限真空度 Final vacuum |
4.0*10-1pa | ||||
| 最高工作溫度 Max. working temperature |
1600℃（或客制化） 1600 ℃ (or customized) |
||||
| 極限真空度 Final vacuum |
4.0*10-1Pa（或客制化） 4.0*10-1Pa (or customization) |
||||
| 收蠟率 Wax collection rate |
97.50%（選配） 97.50% (optional) |
||||
| 允許導入氣體 Gas introduction allowed. |
N2、H2、Ar（可選任意氣體）（選配） N2, H2, ar (optional gas) (optional) |
||||
| 燒結工藝 Sintering process |
真空、分壓燒結、加壓燒結 Vacuum, partial pressure sintering, pressure sintering |
||||
| 脫脂工藝 Degreasing process |
N2 負壓、H2 大氣壓（選項） N2 negative pressure, H2 atmospheric pressure (option) |
||||
| 冷卻工藝 Cooling process |
真空、強制 Vacuum, forced |
||||
以上參數可根據工藝要求調整，不作為驗收依據，具體以技術方案和協議為準
The above parameters can be adjusted according to the process requirements, not as a basis for acceptance, the specific technical plan and agreement shall prevail
粉末冶金燒結爐的配置選擇/Configure select
| 爐型結構 Furnace structure |
單室臥式 Single,horizontal room |
單室立式 single, vertical chamber |
||
| 可設計流水線組合，多臺釬焊爐共用一套真空系統，爐外運輸系統 Can design assembly line combination, multiple brazing furnaces share a set of vacuum system,out-of-furnace transportation system |
||||
| 爐門開啟方式 Furnace door opening mode |
回轉式 rotary |
平開式 Flat type |
||
| 真空泵組和真空計 Vacuum pump set and vacuum gauge |
進口 Imported |
高品質國產 High quality Made in China |
||
| 真空度 Vacuum degree |
高真空 High vacuum |
中真空 medium vacuum |
||
| PLC | 西門子 Siemens |
歐姆龍 OMRON |
三菱 Mitsubishi |
|
| 溫控儀表 Thermostat meter |
歐陸 EUROTHERM |
島電 Electric conduction |
||
| 熱電偶 Thermocouple |
C 分度號（鎢套管 / 鉬套管） C score number (tungsten casing / Mo casing) |
|||
| 記錄儀 Grapher |
有紙記錄儀 Paper recorder |
無紙記錄儀 Paperless recorder |
||
| 人機界面 Human-computer interface |
模擬屏 Analog screen |
計算機觸摸屏 Computer touch screen |
||
| 電器元件 Electrical component |
高品質國產 High quality domestic |
施耐德 Schneider |
西門子 Siemens |
|
